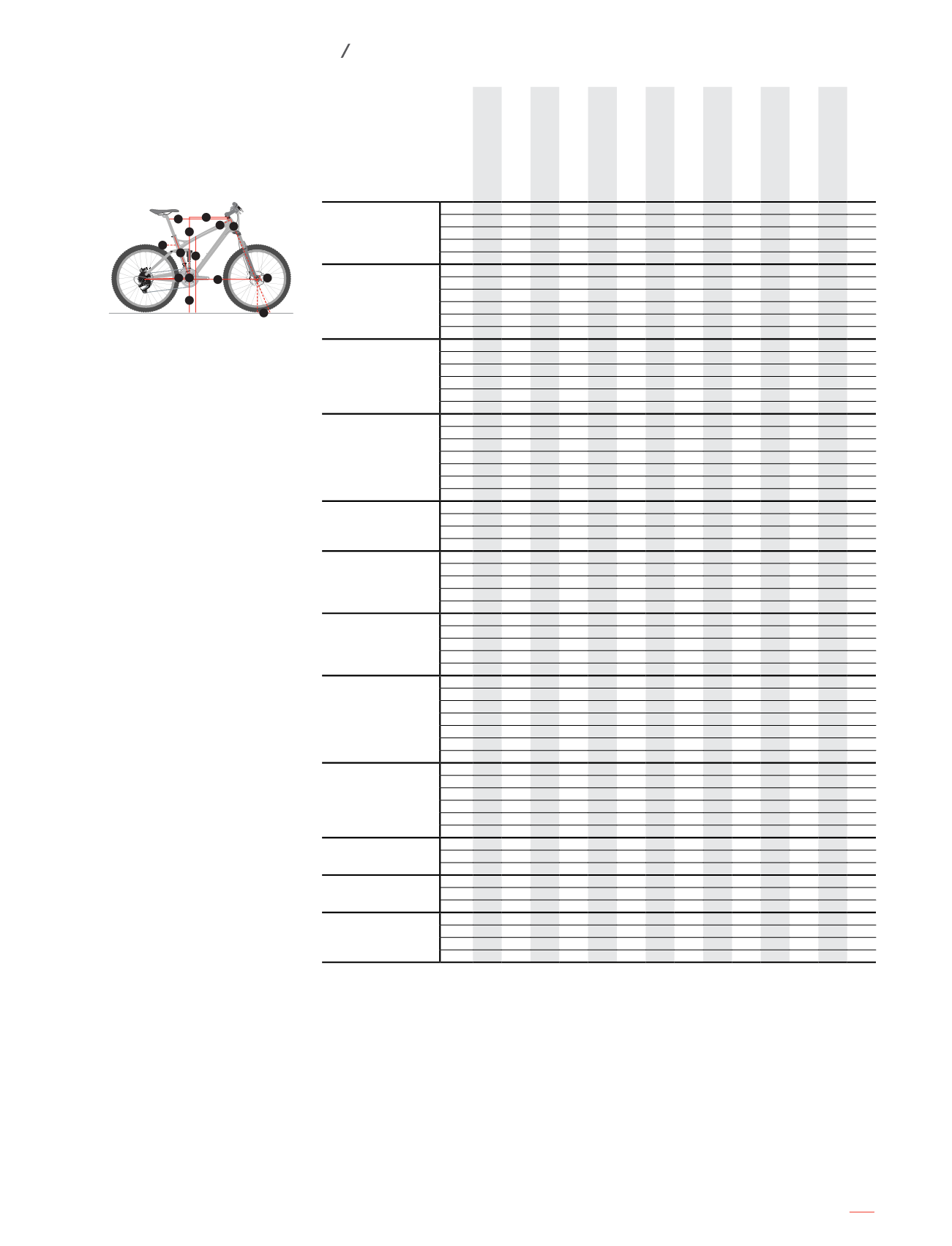

Geometrie - Mountainbike
Modell
Größe*
A - Sitzrohr
B - Sitzwinkel
C - Steuerrohr
D - Lenkwinkel
E - Oberrohr (horizontal)
F - Tretlagerhöhe
G - Tretlager-Absenkung
H - Kettenstreben
I - Gabelvorbiegung
J - Nachlauf
K - Radstand
L - Überstandshöhe
M - „Reach”
N - „Stack”
Superfly Carbon SL
15.5" 36.8 73.0 ° 10.3 69.3 ° 57.0 31.6 5.3 44.5 5.1
8.5 109.0 74.8 38.6 60.2
17.5" 41.6 72.5 ° 10.3 69.3 ° 60.2 31.6 5.3 44.5 5.1
8.5 111.6 76.9 41.2 60.2
19"
45.7 72.0 ° 10.3 69.6 ° 62.2 31.6 5.3 44.5 5.1
8.3 112.7 78.9 42.6 60.3
21"
50.8 72.0 ° 11.8 69.6 ° 64.3 31.6 5.3 44.5 5.1
8.3 114.8 82.2 44.2 61.7
23"
54.5 72.0 ° 11.8 69.6 ° 66.3 31.6 5.3 44.5 5.1
8.3 116.9 84.4 46.2 61.7
Superfly Carbon
15.5" 36.8 73.0 ° 10.0 69.3 ° 57.0 31.1
5.8 43.5 5.1
8.5 107.7 74.7 38.6 60.0
17.5" 41.9 72.5 ° 10.0 69.3 ° 60.2 31.1
5.8 43.5 5.1
8.5 110.3 76.7 41.2 60.0
18.5" 44.4 72.3 ° 10.0 69.6 ° 62.0 31.1
5.8 43.5 5.1
8.3 111.6 77.9 42.7 60.1
19.5" 47.0 72.0 ° 10.0 69.6 ° 63.9 31.1
5.8 43.5 5.1
8.3 113.1 79.2 44.3 60.1
21.5" 52.1 72.0 ° 12.0 69.6 ° 65.9 31.1
5.8 43.5 5.1
8.3 115.2 82.9 45.7 61.9
23"
55.9 72.0 ° 12.0 69.6 ° 67.3 31.1
5.8 43.5 5.1
8.3 116.6 84.7 47.1
61.9
Superfly AL
15.5" 36.8 73.0 ° 10.0 69.3 ° 57.0 31.1
5.8 43.5 5.1
8.5 107.7 74.7 38.6 60.0
17.5" 41.9 72.5 ° 10.0 69.3 ° 60.2 31.1
5.8 43.5 5.1
8.5 110.3 76.5 41.2 60.0
18.5" 44.4 72.3 ° 10.0 69.6 ° 62.0 31.1
5.8 43.5 5.1
8.3 111.6 77.6 42.7 60.1
19.5" 47.0 72.0 ° 10.0 69.6 ° 63.9 31.1
5.8 43.5 5.1
8.3 113.1 79.5 44.3 60.1
21.5" 52.1 72.0 ° 12.0 69.6 ° 65.9 31.1
5.8 43.5 5.1
8.3 115.2 82.3 45.7 61.9
23"
55.9 72.0 ° 12.0 69.6 ° 67.3 31.1
5.8 43.5 5.1
8.3 116.6 84.4 47.1
61.9
X-Caliber 29
14.5" 34.3 74.0 ° 10.0 69.0 ° 54.0 31.1
5.8 44.5 5.1
8.7 107.0 66.0 37.2 58.5
15.5" 36.8 73.0 ° 10.0 69.3 ° 57.0 31.6 5.3 44.5 5.1
8.5 109.0 74.5 38.7 60.0
17.5" 41.9 72.5 ° 10.0 69.3 ° 60.2 31.6 5.3 44.5 5.1
8.5 111.6 76.5 41.3 60.0
18.5" 44.4 72.3 ° 10.0 69.6 ° 62.0 31.6 5.3 44.5 5.1
8.3 112.8 77.7 42.8 60.1
19.5" 47.0 72.0 ° 10.0 69.6 ° 63.9 31.6 5.3 44.5 5.1
8.3 114.4 78.9 44.4 60.1
21.5" 52.1 72.0 ° 12.0 69.6 ° 65.9 31.6 5.3 44.5 5.1
8.3 116.5 82.5 45.8 62.0
23"
55.9 72.0 ° 12.0 69.6 ° 67.3 31.6 5.3 44.5 5.1
8.3 117.9 84.8 47.2 62.0
Cali Women’s
14"
33.0 73.0 ° 10.0 69.0 ° 54.2 31.2
44.5 5.1
8.5 106.3 65.8 36.5 57.9
15.5" 36.8 73.0 ° 10.0 69.0 ° 57.0 31.2
44.5 5.1
8.5 109.3 65.8 38.7 59.8
17"
40.6 73.0 ° 10.0 69.0 ° 59.0 31.2
44.5 5.1
8.5 111.3 66.9 40.7 59.8
18.5" 44.5 73.0 ° 10.0 69.0 ° 61.2 31.2
44.5 5.1
8.5 113.5 68.5 42.9 59.8
Stache
15.5" 36.8 73.0 ° 10.3 68.3 ° 56.8 31.6
44.5 5.1
9.2 110.2 76.0 38.8 61.0
17.5" 41.9 72.5 ° 10.3 68.3 ° 60.0 31.6
44.5 5.1
9.2 112.8 77.7 41.4 61.0
19"
45.7 72.0 ° 10.3 68.6 ° 62.0 31.6
44.5 5.1
9.0 113.9 79.4 42.7 61.1
21"
50.8 72.0 ° 11.8 68.6 ° 64.0 31.6
44.5 5.1
9.0 116.1 82.4 44.3 62.5
23"
54.5 72.0 ° 11.8 68.6 ° 66.1
31.6
44.5 5.1
9.0 118.1 84.4 46.4 62.5
Elite 8 Series
15.5" 39.4 73.0 ° 11.0 69.5 ° 55.5 29.7
42.4 4.0 8.2 104.6 71.5 38.2 56.7
17.5" 44.5 73.0 ° 12.0 69.5 ° 58.8 29.7
42.4 4.0 8.2 107.9 74.0 41.2 57.7
18.5" 47.0 73.0 ° 13.0 69.5 ° 60.7 29.7
42.4 4.0 8.2 109.9 75.6 42.8 58.6
19.5" 49.5 73.0 ° 14.0 69.5 ° 62.5 29.7
42.4 4.0 8.2 111.7 77.2 44.3 59.5
21.5" 54.6 73.0 ° 16.0 69.5 ° 64.5 29.7
42.4 4.0 8.2 113.9 80.9 45.7 61.4
4 Series
13.5" 31.8 73.0 ° 10.0 69.5 ° 52.0 29.7
42.4 4.0 8.2 101.0 70.1 34.9 55.9
15.5" 36.8 73.0 ° 11.0 69.5 ° 55.0 29.7
42.4 4.0 8.2 104.0 72.1 37.6 56.9
17.5" 42.0 73.0 ° 12.5 69.5 ° 57.7 29.7
42.4 4.0 8.2 106.8 75.0 39.9 58.3
18.5" 44.5 73.0 ° 13.5 69.5 ° 59.1 29.7
42.4 4.0 8.2 108.3 76.6 41.0 59.2
19.5" 47.0 73.0 ° 14.5 69.5 ° 60.5 29.7
42.4 4.0 8.2 109.8 78.2 42.1 60.2
21.5" 52.1 73.0 ° 16.5 69.5 ° 63.0 29.7
42.4 4.0 8.2 112.4 81.7 44.0 62.0
23.5" 57.2 73.0 ° 18.5 69.5 ° 65.0 29.7
42.4 4.0 8.2 114.5 85.4 45.5 63.9
3 Series
13"
33.0 74.0 ° 11.0 70.5 ° 52.4 28.7
43.0 4.0 7.6 101.9 70.5
16"
40.6 73.5 ° 11.0 70.5 ° 55.0 29.1
43.0 4.0 7.6 104.0 73.8
18"
45.7 73.5 ° 13.0 70.5 ° 56.5 29.3
43.0 4.0 7.6 105.7 77.2
19.5" 49.5 73.0 ° 15.0 70.5 ° 58.0 29.3
43.0 4.0 7.6 106.8 79.9
21"
53.3 73.0 ° 17.0 70.5 ° 59.0 29.3
43.0 4.0 7.6 107.9 82.7
22.5" 57.2 72.5 ° 19.0 70.5 ° 60.0 29.5
43.0 4.0 7.6 108.4 85.7
Skye SL Disc
13"
35.6 75.0 ° 11.0 69.5 ° 51.5 28.9
42.4 4.0 8.2 102.3 71.3
16"
40.7 74.0 ° 11.0 70.0 ° 53.4 28.9
42.4 4.0 7.9 102.7 74.3
19.5" 45.7 73.5 ° 11.0 70.0 ° 56.5 29.3
42.4 4.0 7.9 105.5 76.7
Skye S
Skye
13"
33.0 74.0 ° 11.0 70.5 ° 52.4 28.7
43.0 4.0 7.6 101.9 65.5
16"
40.6 73.5 ° 11.0 70.5 ° 54.6 29.1
43.0 4.0 7.6 103.6 63.1
19.5" 49.5 73.0 ° 17.0 70.5 ° 57.5 29.3
43.0 4.0 7.6 106.4 62.5
Powerfly+
15.5" 40.0 73.0 ° 14.0 69.0 ° 56.1 33.2 5.3 48.5 5.1
112.0 78.8 36.5 63.8
17.5" 425 72.5 ° 14.0 69.0 ° 58.3 33.2 5.3 48.5 5.1
113.7 79.0 38.2 63.8
19"
470 72.5 ° 16.0 69.0 ° 60.7 33.2 5.3 48.5 5.1
116.2 81.1 40.0 65.6
21"
515 72.5 ° 16.0 69.0 ° 63.2 33.2 5.3 48.5 5.1
118.7 84.3 42.5 65.6
Alle Maßangaben in cm, sofern nicht anders angegeben.
Nicht alle Modelle sind in allen Größen erhältlich.
Nicht alle Größen sind in allen Märkten erhältlich.
*Die „Größe” muss keinem tatsächlichen Maß entsprechen. Die Sitzrohrlänge steht in Spalte A - Sitzrohr.
