A
L
E
D
K
GH
B
J
C
M
I
N
369

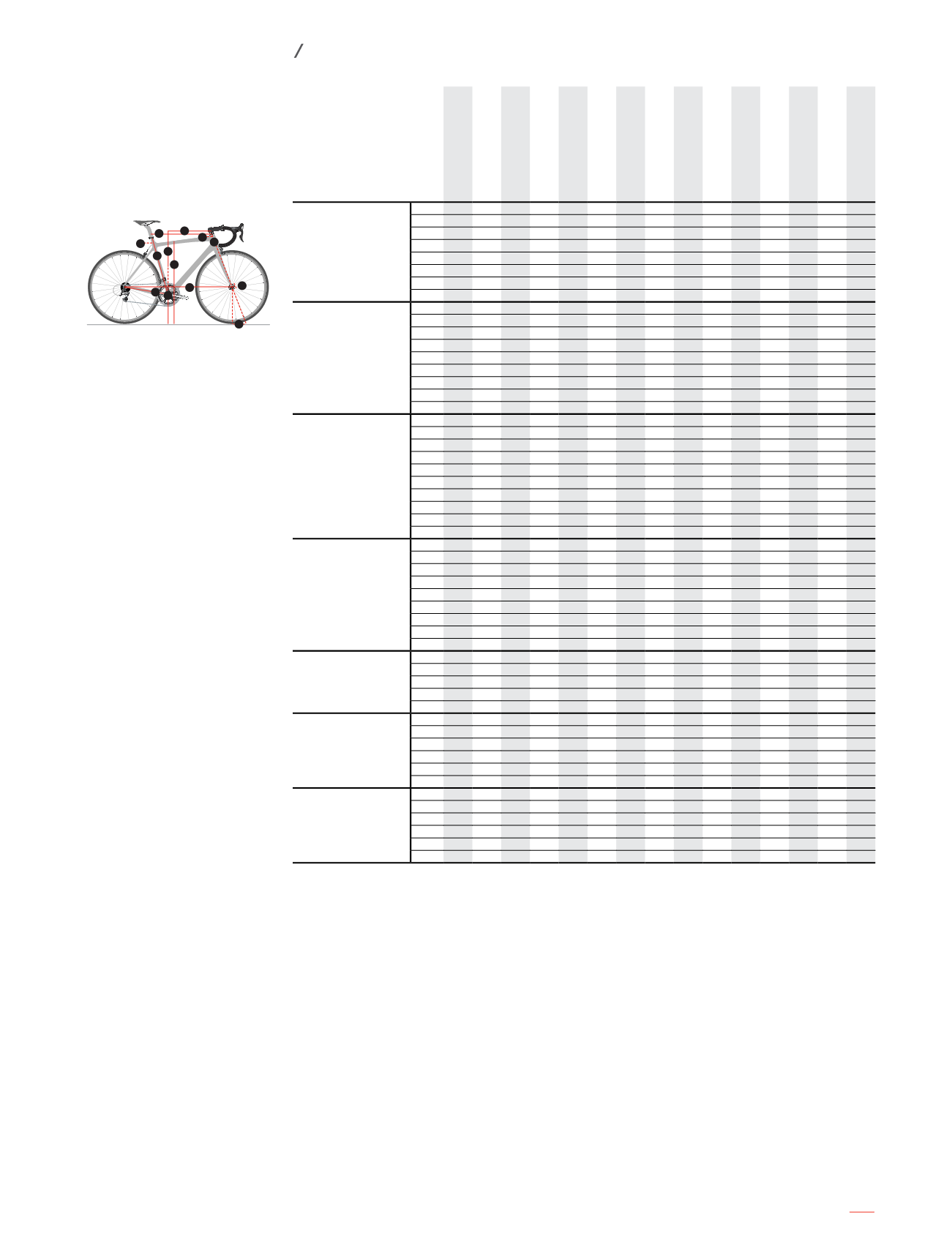

Geometrie - Rennrad
Modell
Größe*
A - Sitzrohr
B - Sitzwinkel
C - Steuerrohr
D - Lenkwinkel
E - Oberrohr (horizontal)
G - Tretlager-Absenkung
H - Kettenstreben
I - Gabelvorbiegung
J - Nachlauf
K - Radstand
L - Überstandshöhe
M - „Reach”
N - „Stack”
Sitzhöhe (maximal)
Sitzhöhe (minimal)
H1-Passform
Madone 7 Series
Madone 6 Series
50cm 45.3 74.6 ° 10.0 72.8 ° 52.8 7.2 40.7 4.5 5.8 97.1 70.6 38.8 50.9 72.5 62.5
52cm 48.3 74.2 ° 11.0 73.0 ° 53.9 7.2 40.7 4.5 5.6 97.6 72.7 39.2 51.9 75.5 65.5
54cm 50.1 73.7 ° 12.5 73.0 ° 55.1
7.0 40.7 4.5 5.6 98.5 74.3 39.6 53.1 78.0 68.0
56cm 52.5 73.3 ° 14.0 73.0 ° 56.4 7.0 40.7 4.5 5.6 99.3 76.2 40.0 54.6 81.0 71.0
58cm 55.3 73.0 ° 16.0 73.8 ° 57.9 7.0 40.7 4.0 5.7 99.2 78.6 40.5 56.9 83.0 73.0
60cm 57.3 72.8 ° 18.0 73.9 ° 59.1
6.8 41.0 4.0 5.6 100.5 80.6 40.9 58.6 85.0 75.0
62cm 59.3 72.5 ° 20.0 73.9 ° 60.3 6.8 41.0 4.0 5.6 101.4 82.4 41.3 60.6 87.0 77.0
62cm 59.3 72.5 ° 20.0 73.9 ° 60.3 6.8 41.0 4.0 5.6 101.4 82.4 41.3 60.6 90.0 80.0
H2-Passform
Madone 7 Series & WSD
Madone 6 Series & WSD
Madone 5 Series
Madone 4 Series
Madone 3 Series
Madone 2 Series
1 Series
47cm 44.4 74.6 ° 12.0 71.2 ° 51.3 7.2 40.7 4.5 6.8 97.1
71.1
36.9 52.2 69.5 59.5
50cm 47.6 74.6 ° 13.0 72.1 ° 52.1
7.2 40.7 4.5 6.2 97.1
73.3 37.4 53.5 72.5 62.5
52cm 49.3 74.2 ° 14.0 72.8 ° 53.4 7.2 40.7 4.5 5.8 97.3 74.7 37.9 54.7 75.5 65.5
54cm 50.6 73.7 ° 15.0 73.0 ° 54.3 7.0 40.7 4.5 5.6 97.8 75.8 38.1 55.5 78.0 68.0
56cm 53.3 73.3 ° 17.0 73.5 ° 56.0 7.0 40.7 4.0 5.8 98.0 78.1 38.7 57.7 81.0 71.0
58cm 55.3 73.0 ° 19.0 73.8 ° 57.4 7.0 40.7 4.0 5.7 98.7 80.0 39.1 59.8 83.0 73.0
60cm 57.3 72.8 ° 21.0 73.9 ° 58.6 6.8 41.0 4.0 5.6 100.0 81.9 39.5 61.5 85.0 75.0
62cm 59.3 72.5 ° 23.0 73.9 ° 59.8 6.8 41.0 4.0 5.6 100.8 83.7 39.8 63.4 87.0 77.0
64cm 61.3 72.3 ° 25.0 74.0 ° 61.0 6.8 41.0 4.0 5.5 101.5 85.6 40.1 65.4 90.0 80.0
H3 WSD-Passform
Madone 3 Series WSD
Lexa SL
Lexa S
Lexa
43cm 38.8 75.5 ° 13.0 70.0 ° 48.0 5.1
41.0 5.0 6.2 97.1 66.4 35.5 48.1
44cm 40.8 74.6 ° 11.0 70.0 ° 49.9 7.2 41.0 5.0 6.9 97.5 68.5 36.0 50.7
47cm 42.8 74.6 ° 12.5 71.0 ° 50.9 7.2 41.0 5.0 6.3 97.6 70.2 36.4 52.5
50cm 45.9 74.6 ° 14.0 71.9 ° 51.7 7.2 41.0 5.0 5.7 97.7 72.6 36.8 54.2
52cm 49.0 74.2 ° 15.5 72.1 ° 52.9 7.2 41.0 4.5 6.1
97.9 74.8 37.1 55.9
54cm 51.5 73.7 ° 17.0 72.6 ° 54.1
7.0 41.0 4.5 5.8 98.3 77.0 37.4 57.3
56cm 54.6 73.3 ° 18.5 73.3 ° 55.4 7.0 41.0 4.0 5.9 97.9 79.3 37.7 59.1
58cm 56.6 73.0 ° 21.0 73.8 ° 56.9 6.8 41.1
4.0 5.6 98.7 81.5 38.1
61.5
60cm 58.6 72.8 ° 23.0 73.9 ° 58.1
6.8 41.1
4.0 5.6 99.5 83.3 38.4 63.4
62cm 60.6 72.5 ° 25.0 73.9 ° 59.3 6.8 41.2 4.0 5.5 100.4 85.1 38.7 65.4
Endurance-Passform
Domane 6 Series & WSD
Domane 5 Series & WSD
Domane 4 Series & WSD
Domane 2 Series
Lexa SLX
44cm 39.0 74.6 ° 9.5 70.3 ° 50.1
8.0 42.0 5.3 6.6 98.3 65.7 36.0 51.0 65.5 55.5
47cm 42.0 74.6 ° 11.0 71.0 ° 50.9 8.0 42.0 5.3 6.1
98.6 68.6 36.4 52.7 69.5 59.5
50cm 45.0 74.6 ° 13.0 71.1 ° 51.9 8.0 42.0 5.3 6.0 99.6 71.6 36.8 54.6 72.5 62.5
52cm 47.5 74.2 ° 14.5 71.3 ° 53.0 8.0 42.0 5.3 5.9 100.3 73.5 37.1
56.1 75.5 65.5
54cm 50.0 73.7 ° 16.0 71.3 ° 54.2 8.0 42.0 5.3 5.9 101.0 75.4 37.4 57.5 78.0 68.0
56cm 52.5 73.3 ° 17.5 71.9 ° 55.4 7.8 42.0 4.8 6.1 100.8 77.6 37.7 59.1
81.0 71.0
58cm 54.8 73.0 ° 19.5 72.0 ° 56.7 7.8 42.5 4.8 6.0 102.2 79.6 38.0 61.1
83.0 73.0
60cm 56.7 72.8 ° 22.0 72.1 ° 57.9 7.5 42.5 4.8 5.9 103.2 81.7 38.3 63.2 85.0 75.0
62cm 58.6 72.5 ° 24.5 72.1 ° 59.3 7.5 42.5 4.8 5.9 104.2 83.5 38.6 65.6 87.0 77.0
Speed Concept 9 Series
Speed Concept 7 Series
XS** 47.8 78.0 ° 9.0 72.0 ° 46.9 5.5 37.4 4.0 6.0 91.6 72.6 37.0 46.8 76.6 56.4
SM 50.3 78.0 ° 6.5 72.2 ° 49.5 8.0 40.0 4.5 6.1
96.1 75.0 39.0 49.2 79.1 58.9
MD 52.9 78.0 ° 9.0 72.5 ° 51.8 8.0 40.0 4.5 6.0 98.5 77.5 40.8 51.7 81.7 61.5
LG 55.3 78.0 ° 11.5 72.5 ° 54.1
8.0 40.0 4.5 6.0 101.0 79.9 42.6 54.1
84.1 63.9
XL
57.8 78.0 ° 14.0 72.5 ° 56.5 8.0 40.0 4.5 6.0 103.7 82.3 44.5 56.5 86.6 66.4
Crockett
50cm 47.6 75.0 ° 11.0 71.0 ° 51.8 7.0 42.5 4.5 7.4 100.1 74.7 37.5 53.4
52cm 49.3 74.5 ° 12.3 71.5 ° 53.1
7.0 42.5 4.5 7.1
100.5 76.1 37.9 54.7
54cm 51.3 74.0 ° 13.8 72.0 ° 54.4 6.8 42.5 4.5 6.7 101.0 77.9 38.3 56.2
56cm 53.3 73.6 ° 15.7 72.0 ° 55.8 6.8 42.5 4.5 6.7 102.0 79.6 38.7 58.0
58cm 55.3 73.3 ° 17.6 72.3 ° 57.0 6.5 42.5 4.5 6.6 102.8 81.6 39.1 59.7
61cm 58.3 73.0 ° 20.5 72.3 ° 58.8 6.5 42.5 4.5 6.6 104.3 84.3 39.7 62.4
CrossRip
49cm 50.0 74.5 ° 10.5 70.6 ° 52.5 7.4 43.5 4.5 7.6 101.5 73.1
37.6 53.6
52cm 52.0 74.0 ° 12.8 71.2 ° 54.8 7.4 43.5 4.5 7.2 102.9 75.3 38.7 56.0
54cm 54.0 73.5 ° 15.0 71.5 ° 56.9 7.4 43.5 4.5 7.0 104.2 76.7 39.6 58.2
56cm 56.0 73.0 ° 16.7 72.0 ° 58.4 7.0 43.5 4.5 6.7 105.0 78.7 40.2 59.6
58cm 58.0 73.0 ° 18.0 72.5 ° 59.3 7.0 43.5 4.5 6.4 105.3 80.1 40.6 61.1
61cm 61.0 72.5 ° 20.0 72.5 ° 60.9 7.0 43.5 4.5 6.4 106.3 82.6 41.0 63.0
Alle Maßangaben in cm, sofern nicht anders angegeben.
Nicht alle Modelle sind in allen Größen erhältlich.
Nicht alle Größen sind in allen Märkten erhältlich.
*Die „Größe” muss keinem tatsächlichen Maß entsprechen. Die Sitzrohrlänge steht in Spalte A - Sitzrohr.
**Reifengröße 650.
